> 회전문 소개> 자동회전문 |
|
|
|
 |
 |

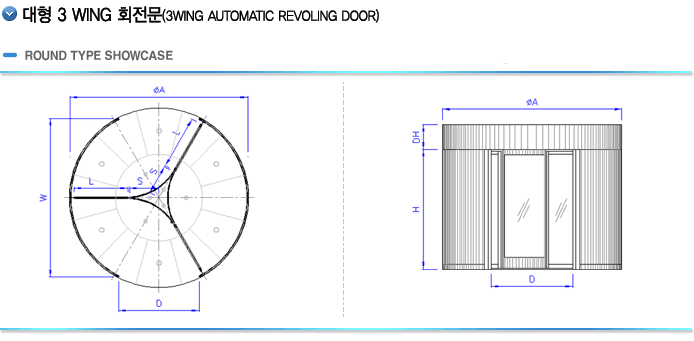

(단위:mm) |
|
| ØA |
D |
W |
L |
G |
H |
DH |
3300 |
2180 |
2445 |
905
|
1255 |
free |
at
least 450 |
3400 |
2230
|
2515 |
930 |
1300 |
free |
at
least 450 |
3500 |
2300 |
2595 |
955 |
1345 |
free |
at
least 450 |
3600 |
2370 |
2655 |
990 |
1390 |
free |
at
least 450 |
| 3700 |
2430 |
2725 |
1005 |
1435 |
free |
at
least 450 |
| 3800 |
2500 |
2795 |
1030 |
1490 |
free |
at
least 450 |
| 3900 |
2570 |
2885 |
1055 |
1525 |
free |
at
least 450 |
|
|
|
|
|
| |
 |
 |

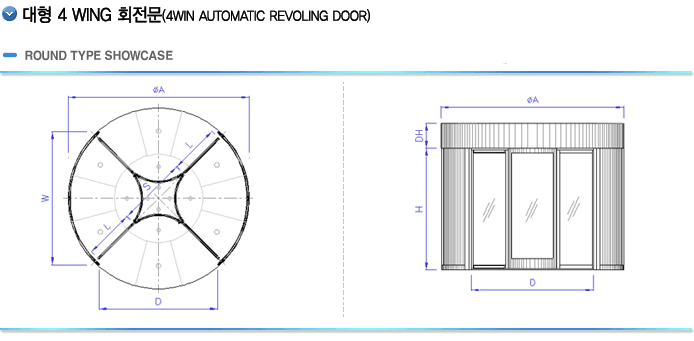

(단위:mm) |
|
| ØA |
D |
W |
L |
G |
H |
DH |
3300 |
1450 |
2915 |
995 |
560 |
free |
at
least 450 |
3400 |
1500 |
3005 |
1015 |
590 |
free |
at
least 450 |
3500
|
1550 |
3095 |
1045 |
600 |
free |
at
least 450 |
3600 |
1600 |
3195 |
1075 |
620 |
free |
at
least 450 |
| 3700 |
1650 |
3275 |
1105 |
640 |
free |
at
least 450 |
| 3800 |
1700 |
3385 |
1135 |
660 |
free |
at
least 450 |
| 3900 |
1750 |
3455 |
1165 |
690 |
free |
at
least 450 |
| 4000 |
1900 |
3545 |
1195 |
700 |
free |
at
least 450 |
| 4100 |
1950 |
3835 |
1223 |
720 |
free |
at
least 450 |
| 4200 |
1900 |
3725 |
1255 |
740 |
free |
at
least 450 |
|
|
|
|
|
|
|
|
|
