(주)지아이티
> 회전문 소개> 수동회전문

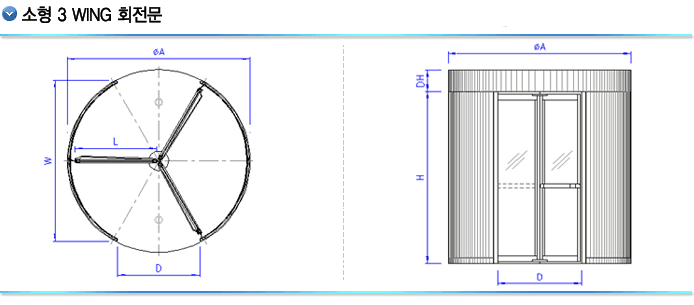

(단위:mm)
ØA D W L H DH(수동) DH(자동)
1800
 1150 1340 770 free free at least 250
1900
 1220 1410 920 free free at least 250
2000
1290 1490 970 free free at least 250
2100
 1380 1550 920 free free at least 250
2200 1430 1620 970 free free at least 250
2300 1500 1690 1020 free free at least 250
2400 1570 1780 1070 free free at least 250
2500 1640 1930 1120 free free at least 250
2600 1710 1900 1170 free free at least 250
2700 1790 1970 1220 free free at least 250

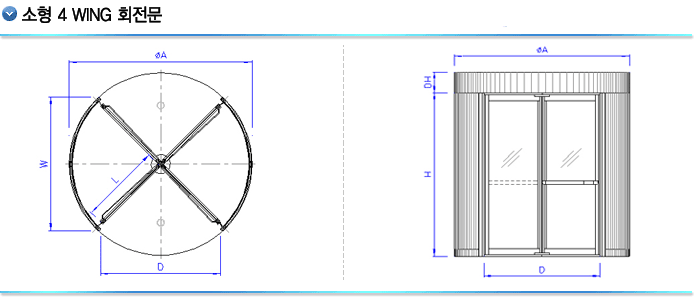

(단위:mm)
ØA D W L H DH(수동) DH(자동)
1800
 790 1590 770 free free at least 250
1900
 930 1670 920 free free at least 250
2000
 990 1780 970 free free at least 250
2100
 930 1950 920 free free at least 250
2200 990 1940 970 free free at least 250
2300 1030 2030 1020 free free at least 250
2400 1090 2120 1070 free free at least 250
2500 1130 2210 1120 free free at least 250
2600 1190 2300 1170 free free at least 250
2700 1230 2390 1220 free free at least 250
